Choosing how to connect a Level 2 charger to your home can matter as much as which charger you buy. The decision between a hardwired unit and a plug-in model shapes installation cost, charging speed, safety, and how easily you can upgrade or move the equipment later.
As more drivers bring home vehicles like the Tesla Model Y, Ford F-150 Lightning, Hyundai Ioniq 5, and Chevrolet Blazer EV, I see the hardwire versus plug-in question becoming a defining fork in the road for home charging. The right answer depends on your electrical panel, your parking setup, and how long you expect to stay put, not on a one-size-fits-all rule.
How home EV charging works and where hardwired vs plug-in fits in
At a basic level, home charging comes down to how much power you can safely pull from your electrical system and how consistently you can deliver it to the car. Level 1 charging uses a standard 120 volt outlet and typically adds only a few miles of range per hour, while Level 2 charging uses 240 volts and can add dozens of miles per hour depending on amperage and vehicle limits, as outlined in several technical overviews. Both hardwired and plug-in Level 2 chargers rely on the same underlying 240 volt circuits, but they connect to that power in different ways.
Hardwired chargers are permanently connected to a dedicated circuit, with the cable running directly into a junction box, while plug-in chargers use a heavy duty receptacle such as NEMA 14-50 or NEMA 6-50 and a matching plug on the charging unit. In practice, that means the hardwired option behaves more like a built-in appliance, and the plug-in option behaves more like a large, specialized device that can be unplugged and replaced. Many modern wall units, including popular 40 amp and 48 amp models, are sold in both configurations so homeowners can match the installation style to their electrical panel and parking layout, a choice reflected in multiple infrastructure guides.
What “hardwired” really means for a Level 2 charger

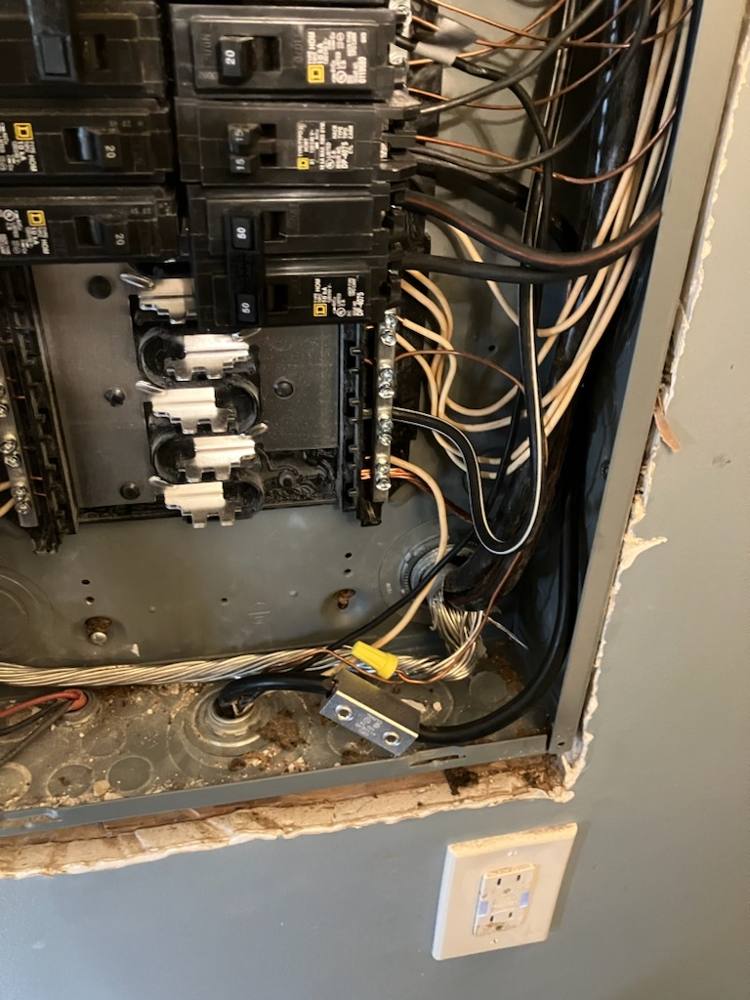

When an electrician hardwires a Level 2 charger, they run conductors from a dedicated breaker in your panel directly into the charger’s junction box, then secure the connection with wire nuts or lugs and a cover plate. There is no receptacle in between, which removes one potential failure point and usually allows the circuit to be sized for the charger’s maximum continuous load under the National Electrical Code’s 125 percent rule for continuous duty, as described in several code summaries. For a 48 amp charger, that typically means a 60 amp breaker and appropriately sized copper conductors.
Because the wiring is permanent, hardwired chargers are often favored for higher amperage units and for outdoor installations where weather exposure is a concern. Many manufacturers explicitly rate their 48 amp and 80 amp models for hardwire only, noting that plug-in configurations are limited by the maximum continuous rating of common receptacles such as NEMA 14-50, which is generally 40 amps for continuous loads according to UL standards. In practice, that means drivers who want the fastest possible home charging that their vehicle and panel can support often end up with a hardwired unit, especially when they are installing a new circuit anyway.
How plug-in EV chargers work and where they shine
Plug-in Level 2 chargers connect to a 240 volt receptacle, most commonly NEMA 14-50, which is also used for RVs and some electric ranges, or NEMA 6-50, which is common for welders and shop equipment. The charger’s cord has a molded plug that inserts into the receptacle, and the circuit is still dedicated to the charger even though it looks like a standard outlet, a setup that aligns with guidance in several home charging guides. Because the receptacle is a standardized interface, homeowners can swap chargers without opening the panel or calling an electrician, as long as the replacement unit matches the circuit’s amperage.
This flexibility is the main advantage of plug-in units. If you move, you can simply unplug the charger, cap the receptacle, and take the unit to your next home, leaving behind a relatively inexpensive outlet that can serve another EV owner or be repurposed. Plug-in chargers also make it easier to upgrade as new models add features like better load sharing, improved Wi-Fi connectivity, or support for standards such as ISO 15118 and Plug & Charge, which are discussed in several technical references. For many drivers in rentals or short term homes, that portability can outweigh the modest performance and durability tradeoffs.
Installation cost, permits, and panel realities
From a cost perspective, the biggest variable is not whether the charger is hardwired or plug-in, but how far your panel is from your parking spot and how much spare capacity you have. Running a new 240 volt circuit across a finished basement or through a long detached garage can quickly dominate the bill, with labor and materials often exceeding the price of the charger itself, a pattern reflected in multiple cost studies. In many cases, the incremental cost difference between terminating that circuit in a junction box for hardwiring or in a NEMA 14-50 receptacle is relatively small.
Permitting and inspection requirements tend to be similar for both approaches, since local authorities usually care about the new circuit’s load, breaker size, conductor gauge, and GFCI protection rather than the final connection method. Some jurisdictions, however, have begun to treat plug-in EV chargers on NEMA 14-50 circuits more like fixed appliances than like general purpose outlets, requiring dedicated circuits and labeling to avoid misuse, as noted in several regulatory reviews. Where panel capacity is tight, electricians may recommend a lower amperage plug-in unit paired with load management or a smart breaker, while homeowners planning a major service upgrade often choose a higher amperage hardwired unit to future proof the installation.
Safety, reliability, and code considerations
Safety is where the hardwired versus plug-in distinction becomes more than a matter of convenience. Hardwired connections eliminate the receptacle and plug interface, which can be a source of heat buildup if the blades are not fully seated or if the contacts loosen over time. Continuous high current charging sessions, especially at 40 amps or above, can stress marginal connections, and several safety advisories have highlighted the importance of properly rated devices and tight terminations for EV charging circuits.
Plug-in chargers are safe when installed correctly with high quality receptacles, proper torque on terminal screws, and weather appropriate covers, but they introduce more components that must be maintained. Outdoor installations in particular can expose plugs and receptacles to moisture, dust, and temperature swings, which is why many manufacturers recommend hardwiring for exterior locations or specifying in-use covers and periodic inspections, guidance that appears in several installation manuals. Code also plays a role: the National Electrical Code has evolved to require GFCI protection for many 240 volt receptacles in garages and outdoors, and some inspectors prefer hardwired EVSE with integrated protection to reduce the risk of nuisance tripping or miswired outlets.
Charging speed, amperage limits, and future EVs
Charging speed at home is ultimately constrained by three things: the vehicle’s onboard charger, the EVSE’s maximum output, and the circuit’s amperage. Many mainstream EVs, including models like the Hyundai Ioniq 5 and Volkswagen ID.4, have onboard chargers in the 7.2 kilowatt to 11 kilowatt range, which translates to roughly 30 amps to 48 amps at 240 volts, according to several technical summaries. If your EV tops out at 32 amps, a 40 amp circuit with a plug-in charger may be all you ever need, regardless of whether the unit is hardwired.
The calculus changes if you own or expect to buy vehicles with larger onboard chargers, such as some versions of the Ford F-150 Lightning or higher trim Tesla models that can accept 48 amps or more on AC. Plug-in chargers on NEMA 14-50 circuits are typically limited to 40 amps continuous to stay within the receptacle’s rating, while hardwired units can be configured for 48 amps or higher on appropriately sized circuits, a distinction noted in several equipment comparisons. For households planning to run two EVs on staggered schedules or to rely heavily on overnight charging for long daily commutes, that extra headroom can translate into more flexibility and less time tethered to the cord.
Flexibility, portability, and resale value
Portability is where plug-in chargers have a clear edge. If you are renting, expect to move within a few years, or think you might convert your garage to another use, being able to unplug the charger and take it with you can be a significant advantage. The remaining NEMA 14-50 or 6-50 receptacle can still add value for the next occupant, who can either install their own EVSE or use the outlet for other high draw equipment, a pattern highlighted in several EV ready building code discussions.
Hardwired chargers, by contrast, tend to feel more like a permanent amenity, similar to a built-in range or central air conditioning. For homeowners planning to stay put, that permanence can be a selling point, especially as more buyers look for move-in ready EV charging. Real estate analyses have begun to note that homes with dedicated Level 2 charging can command a premium in markets with high EV adoption, and a cleanly installed hardwired unit can signal a professional job that aligns with local EV ready guidelines. The tradeoff is that if you do move, you are more likely to leave the hardwired charger behind, treating it as part of the property rather than personal equipment.
Outdoor use, weather exposure, and durability

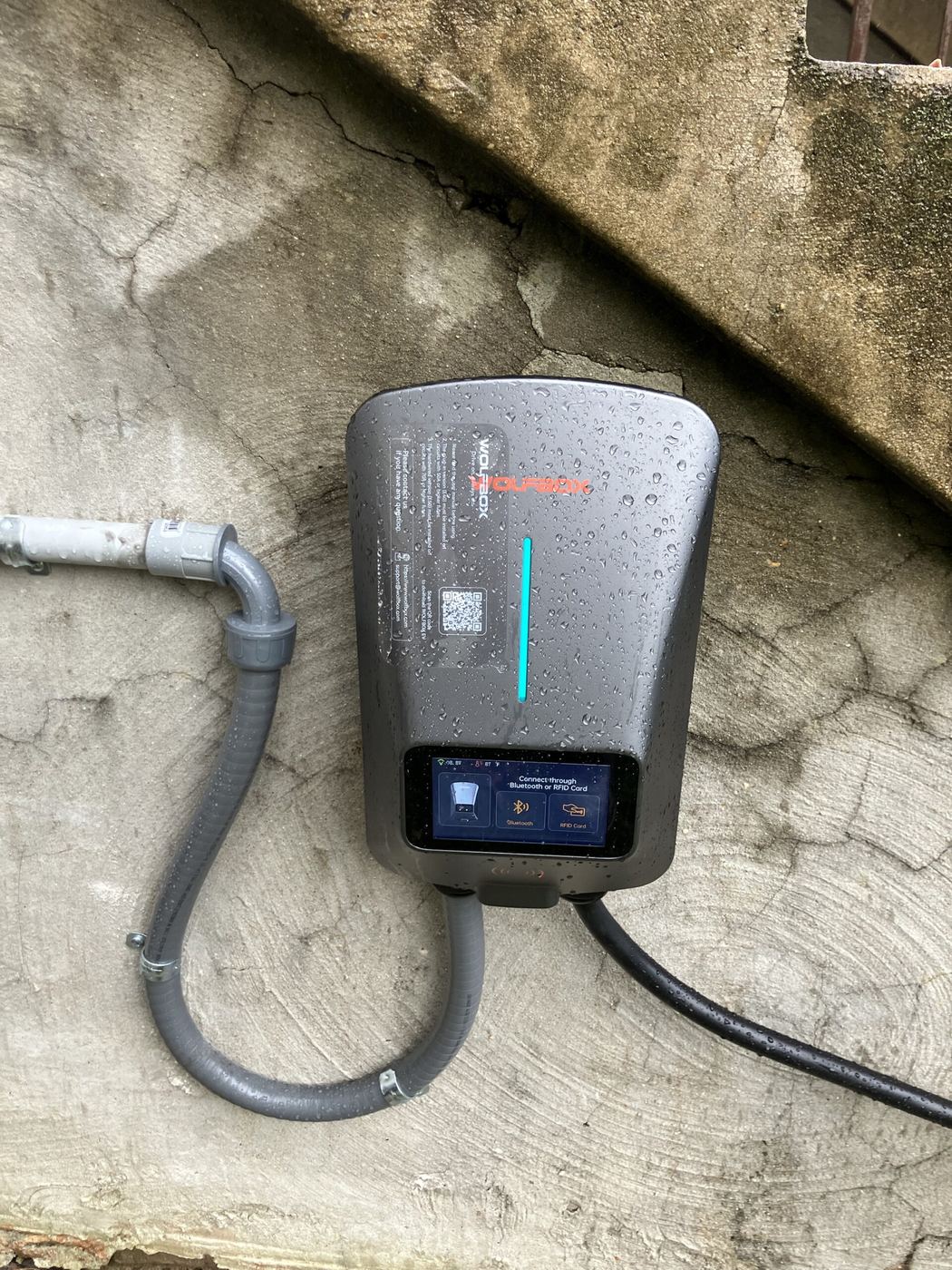

Outdoor installations introduce another layer of complexity. Hardwired chargers typically have sealed enclosures with conduit entries that can be gasketed or threaded, which helps keep water and debris out of the wiring compartment. When mounted on an exterior wall or pedestal, a hardwired unit avoids exposing a plug and receptacle to rain, snow, or direct sunlight, conditions that can accelerate wear and corrosion, as documented in several field performance reports. For coastal or high humidity environments, reducing the number of exposed metal contacts can materially improve long term reliability.
Plug-in chargers can be used outdoors, but they require more careful attention to weatherproofing. In-use covers, gasketed receptacle boxes, and proper mounting height are all important to keep moisture away from the plug interface, and some manufacturers restrict their plug-in models to indoor or sheltered locations in their installation instructions, guidance that appears in multiple manufacturer manuals. If your only practical mounting location is on an exterior wall with full weather exposure, I generally view a hardwired unit with a suitable NEMA enclosure rating as the more robust choice, especially in climates with frequent freeze-thaw cycles or wind driven rain.
Smart features, load management, and multi-EV households
Whether a charger is hardwired or plug-in does not inherently determine its intelligence, but it can influence how easily you can implement advanced features. Many Wi-Fi enabled units that support app based scheduling, energy monitoring, and utility demand response programs are offered in both configurations, and the communication hardware is independent of the power connection, as shown in several smart charging studies. For a single EV household, the choice between hardwired and plug-in often has little impact on how you use these features day to day.
In multi-EV homes, however, panel constraints and load sharing strategies can tilt the balance. Some manufacturers offer paired hardwired units that communicate with each other to share a single circuit, dynamically allocating amperage based on which car is plugged in, a capability described in several managed charging pilots. While similar functionality can exist in plug-in units, electricians may prefer hardwired installations when configuring complex load management schemes, especially if they are integrating with smart panels, whole home energy monitors, or backup power systems that rely on precise knowledge of each circuit’s maximum draw.
How I would choose for common home scenarios
For a homeowner with a modern panel, an attached garage, and plans to stay in place for a decade or more, I generally lean toward a higher amperage hardwired charger on a dedicated circuit sized for at least 48 amps of continuous output, assuming the panel can support it. That setup maximizes charging speed, minimizes exposed connections, and aligns with the direction of newer EVs that are shipping with larger onboard chargers, a trend reflected in several market trend reports. It also positions the home well for resale in an EV heavy market, where buyers increasingly expect robust, permanent charging infrastructure.
For renters, condo owners with uncertain rules, or anyone likely to move within a few years, a 32 amp or 40 amp plug-in charger on a NEMA 14-50 or 6-50 receptacle often makes more sense. The installation still requires a dedicated 240 volt circuit and proper permitting, but the charger itself becomes a portable asset that can follow you to your next home, a flexibility emphasized in several multifamily charging guides. In between those poles, hybrid approaches are emerging, such as installing an EV ready circuit with a receptacle today and planning to hardwire a higher amperage unit later when panel upgrades or new vehicles justify the change. By matching the connection method to your time horizon, panel capacity, and climate, you can turn a binary sounding choice between hardwired and plug-in into a tailored fit for how you actually live and drive.
